144 Fibers 19 Inch 1U MPO MTP Patch Panels Aqua Blue Optical Fiber Patch Panel

Name: 144 Fibers 19 Inch 1U MPO MTP Patch Panels Aqua Blue Optical Fiber Patch Panel
Brand: Begate, OEM or ODM
Price: 1 USD

China 144 Fibers 19 Inch 1U MPO MTP Patch Panels Aqua Blue Optical Fiber Patch Panel wholesale

Brand Name : Begate, OEM or ODM

Model Number : ODF Cabinet

Certification : CE/RoHS/ISO9001

Place of Origin : Made in China

MOQ : We are the factory. No MOQ, 1piece is ok.

Price : To be negotiated

Payment Terms : T/T, PayPal, Western Union, D/A, D/P, MoneyGram, L/C

Supply Ability : 60000 Piece/Pieces per Week

Delivery Time : Samples within 3 days, bulk orders within 15 working days

Packaging Details : 1 PCS Carton box

Product name : 144 Fibers 19 Inch 1U MPO MTP Optical Fiber Patch Panel

Size : 19 rack mounted

Body Material : Cold Rolled Steel

Port : 144 Cores

Connector : SC,LC/SC/FC/ST/MPO,LC,FC,MPO/ MTP

Aapter optional : MPO MTP LC

Standard Size : 1U

Contact Now

MPO MTP Patch Panel 3U 288 Port MPO Fiber Optic With 12 X 24 Core MPO Cassette

Product Description of MPO MTP Patch Panels:

This MTP MPO high-density series ODF adopt high-density fiber connector and single/ribbon fibers finished termination and test in the factory. Support onsite equipment connect and using immediately, and finish data center development fast. It’ ideal solution for increasingly high-density cable management of data center. MTP/MPO backbones with LC or SC patching.MTP/MPO Cassettes contain factory controlled and tested MTP/MPO-LC fanouts to deliver optical performance and reliability.

High Density (HD) Series patch panels offer an extra slot that accepts up to four adapter panels or MPO cassettes in the 1RU footprint. This design has been accomplished by staggering the mounting ears. The HD patch panels are ideal for high fiber count applications and will fit into any standard 19” or 23” rack by rotating the panel’s mounting ears.

Features of MPO MTP Patch Panels:

3U High Height
Reversible 19" or 23" Rack Mount
Splice & Terminate up to 288 Fibers
Slide with drawer
Load max. 4pcs MTP/MPO cassett
Each MTP/MPO cassette can load 6pcs LC quad adapter & 2pcs MTP/MPO adapter, max. 24fibers.
After installation of cross screw, the surface and distribution frame are flat and raised, and the touch is flat to avoid friction；
It adopts standard unit structure size and is suitable for the installation of various cabinets and racks
Finishing: powder coated
Fits into 19 inch installations
Max capacity up to 144 fiber for 1U
Sliding tray design
Easy to operate and maintain
The MTP/MPO cassette with PC material transparent cover, easy to observation and maintenance
Fixed type, with PC material front transparent cover, convenient for observation and maintenance
It's cover is easy to open and close by using button

Applications of MPO MTP Patch Panels:

Fiber Channel
Emerging 40 and 100Gbps protocols compatible
Data centers,pre-terminated installations
Telecommunication networks
Available in SM, OM1, OM2, OM3 and OM4 fiber grades
Flat Front Panel for Optimal Cable Routing
Removable Top for Easier Fiber Cable Management
Easily Accessible MPO/MTP Ports for Connection to Trunk Cable
24 Fibre ferrule MPO MTP interface
Premium LC Low Loss terminations

Technical Parameter of MPO MTP Patch Panels:

Performance Level			Standard		Elite
Connector	Mode	Endface	IL(max) (dB)	RL(min) (dB)	IL(max) (dB)	RL(min) (dB)
MPO/MTP	SM	12F/APC	≤0.70	≥60	≤0.35	≥60
		24F/APC	≤0.75	≥60	≤0.35	≥60
		48F/APC	≤0.75	≥60
	MM	12F/PC	≤0.50	≥20	≤0.35	≥20
		24F/PC	≤0.50	≥20	≤0.35	≥20
		48F/PC	≤0.50	≥20
LC/SC/FC/ST	SM		≤0.30	≥60	≤0.10	≥60
	SM	UPC	≤0.20	≥50	≤0.10	≥50
	MM	PC	≤0.20	≥30	≤0.10	≥30

Type	Size(cm)	Max capacity	Outer carton diameter(cm)	Outer carton diameter
UF-JJ-CL-1U	48.2301U	24	48.54235/5pcs	27.5
UF-JJ-CL-2U	48.2302U	72	49.53454.5/4pcs	26.4
UF-JJ-CL-3U	48.2303U	96	503554/3pcs	23.1
UF-JJ-CL-4U	48.2304U	144	503554/2pcs	18.9

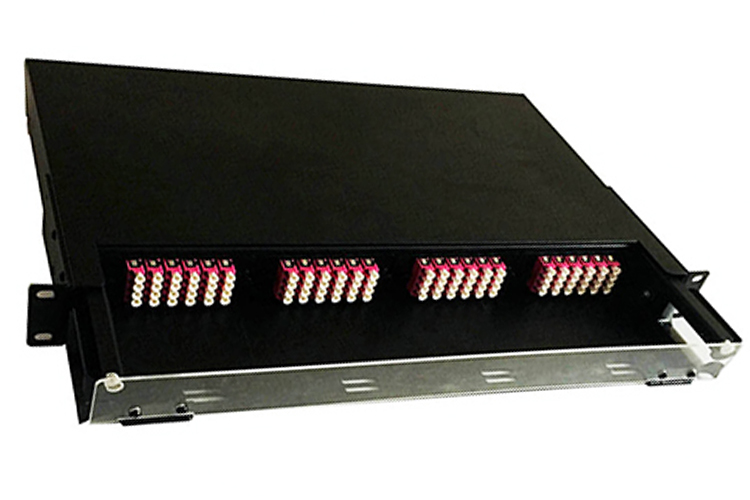

Detil of MPO MTP Patch Panels:

144 Fibers 19 Inch 1U MPO MTP Patch Panels Aqua Blue Optical Fiber Patch Panel

Packaging:

144 Fibers 19 Inch 1U MPO MTP Patch Panels Aqua Blue Optical Fiber Patch Panel

FAQ:

Q1. Could you offer samples?
Yes, samples are accepted.You need place sample order to us, and we will reduce from bulk order.

Q2. What's the delivery time for sample order?
Normally about 3days after confirmation.

Q3. Could you do design for us?
Yes, we provide customized service and can do artworks including printing, logo etc. for you.

Q4. What's the payment terms?
TT, WesternUnion, Escrow(secure payment), Trade assurance, Cash, etc.

Q5. Can I use my own LOGO and design on products?
YES, OEM is welcomed.

Q6. How to send the goods?
Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.

Q7. What's the delivery time for bulk order?
Normally 5-10 days depends on products and order quantities.
